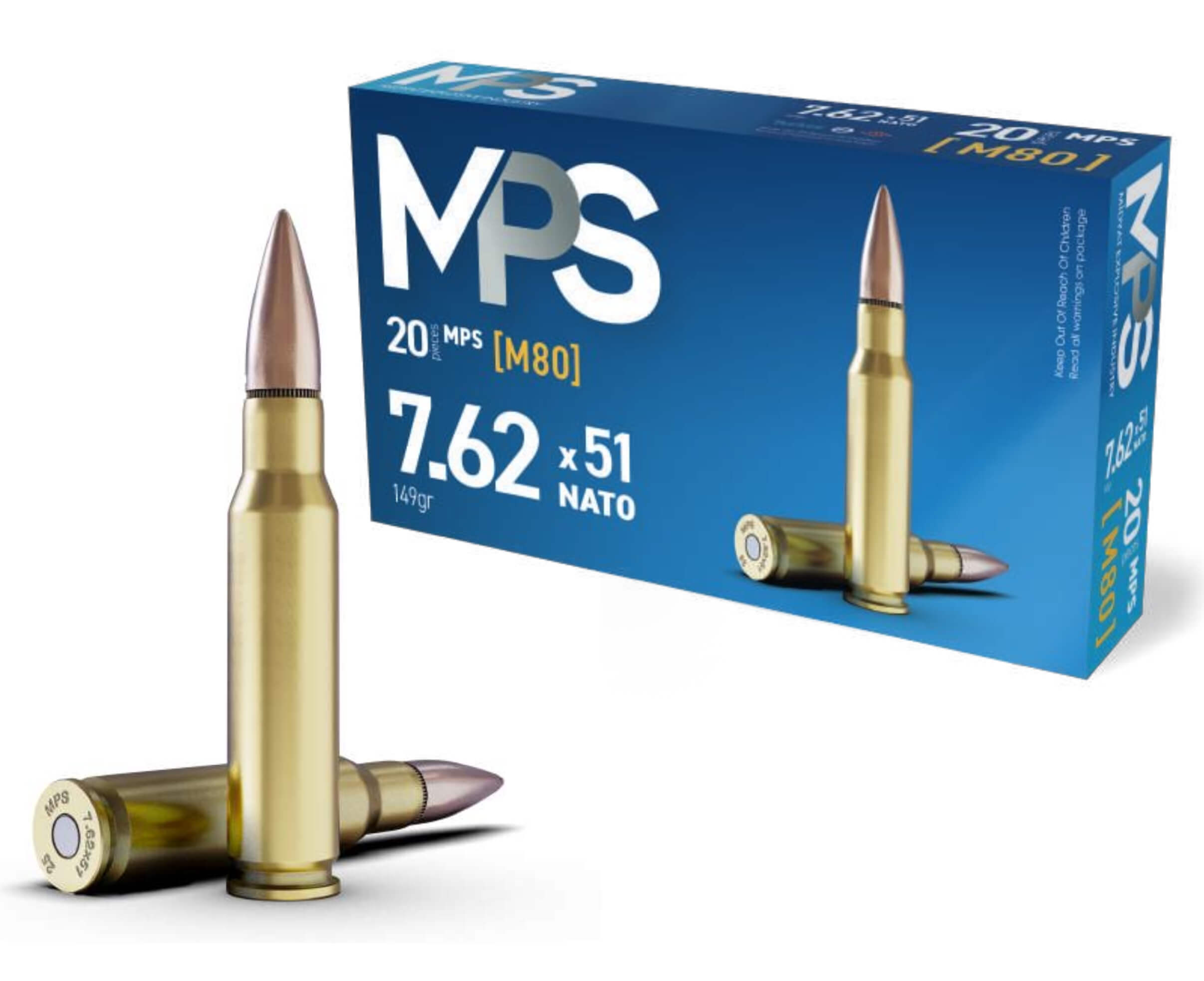

MPS 7,62x51mm (M80)
| Projectile (Core) | 149 gr (~9,67g) |
| Projectile (Core) Material | Jacketed-Tombak/CuZn10 Inner Lead Lead Antimony |
| Projectile (Core) Length | 29.46 mm |
| Case Material | Brass CuZn30 |
| Case Length | Max. 51.18 mm |
| Primer | Boxer Primer |
| Propellant Type | Double-Base Propellant |
| Case Mouth Pressure | Pmax + 3Sd < 4450 |
| Chamber Pressure | Port + 3Sd > 560 Bar |
| Velocity (m/s) at 24 meters | 833 ± 10 |
| Dispersion at 550m | Max. 12.7 cm |
| Action Time | < 4 ms |
| Projectile Contact Force | Min. 27 kgf |
| Cartridge Length | Max. 71.12 mm |
| Water Resistance | Yes |
| Reference Document / NATO Standard AEP-97 | NATO STANAG 2310 |
| Heat Resistance | - 54°C, + 52°C |
Packaging
- 20 cartridges in 1 Inner Box
- 10 inner boxes (200 pieces) in 1 PVC bag
- 5 PVC bags in 1 wooden crate (1.000 pieces)
